ENVELOPE SEQUENCER

By ayrtbh

A sequence of envelopes. As an alternative of MODULATION SEQUENCER.

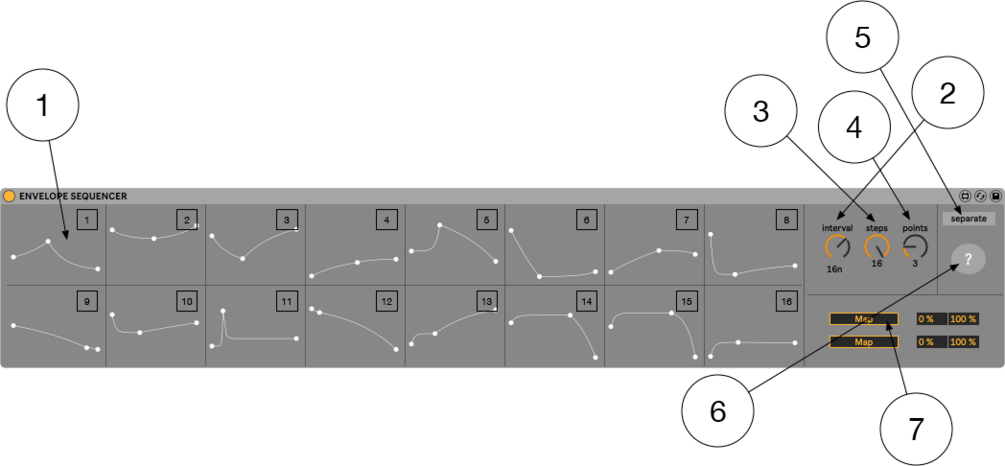

1. 1(of 16) envelope.

2. The duration for every envelope, synced to current tempo.

3. How many envelopes are used in the sequence, up to 16.

4. How many breakpoints in every envelope, up to 7.

5. When set to "separate" every envelope is independent to each other. When set to "connected" one envelope's first point has the same value with the previous envelope's last point value, makes all envelopes in the sequence a continuous curve.

6. Click to generate all envelopes.

7. Map the envelope sequencer to any mappable parameter in Live.

* Click and drag breakpoint to change envelope manually, option+drag to change curve.

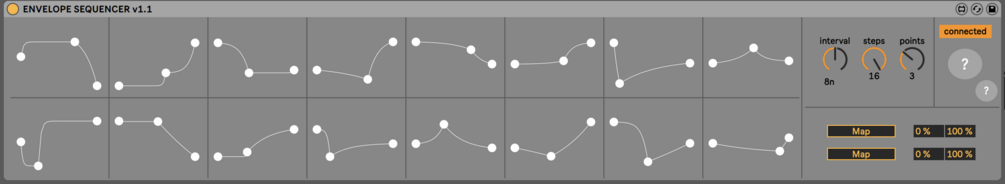

Changes in v1.1:

• Change「points max」from 7 to 5
• Change「steps min」from 1 to 2
• Larger point size
• Now when the「connected」is turned on, the first env's first point always equals to the last env's last point, which makes the whole curve a truly「connected」 parameter loop. Thanks Nico for the suggestion.
• Fix a bug when press the random button sometimes causes very high CPU use.
• A new smaller random button change only one point of one envelope, can be used to slowly evolve a parameter.
• Instead flash, the envelope's backlight is always on when sequence is in that step.

Changes in v1.2:

• New "shrink" feature to save space in the rack.
• Fix: Playback Envelope Sequencer won't flood Live's undo history now.
• Many UI changes, most of the UI texts have been removed.

Changes in v1.2.1:

• "interval", "steps" and "points" now can be mapped to macro.
